Tire Pyrolysis Plant Waste Plastic To Oil Project XJZ

Waste Tire Pyrolysis plant Plastic to Oil Project

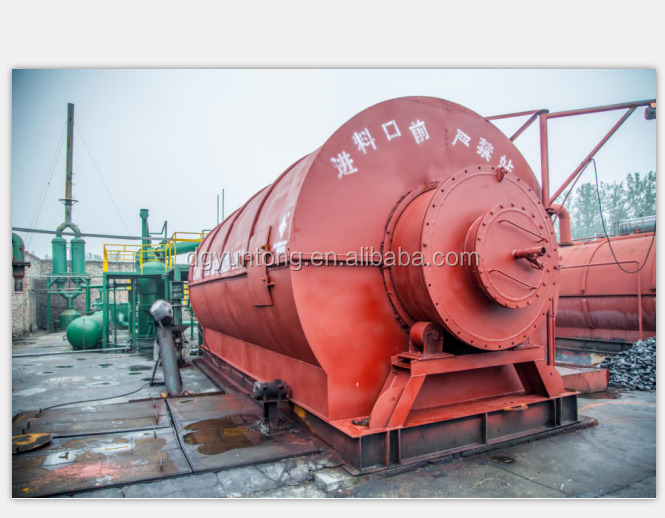

^{First step: waste tire to oil pyrolysis machine}

^{Second step: oil distillation machine}

^{Third step: remove color and odor get diesel machine}

<sup>Working processes of waste tyre recycling pyrolysis plant are as following:
1. Make reactor rotate clockwise 0.4r/min, put raw material into reactor, close feeding door.
2. Burned the fuel material (coal, wood, natural gas or oil) in the furnace. Reactor will be slowly heated, when the temperature reach around 180℃, oil gas will come out, then go to cooling system and get liquid oil. Some incondensable gas which can’t cool down will be lead to furnace through a gas pipe. It will be used to heat reactor which can save your energy. Only the first 2 hours use energy for heating. After the first 2 hours mainly use gas, little energy is OK. After pyrolysis, all the oil gas come out from reactor, the temperature will fall down. Then make it rotate anticlockwise, carbon black discharging begin.
3. When the temperature deduce to 50℃, worker can opened the door of reactor take steel wire out.
4. And then you can start the next batch.
The output of Doing’s waste tyre recycling pyrolysis plant
Take one batch 10T waste tyre recycling pyrolysis plant for example:
a. Crude oil: 45%*10t=4.5t
b. Carbon black: 35%*10t=3.5t
c. Steel wire: 13%*10t=1.3t</sup>
